Sausages & Meatballs
Automatic Skewering Machine MY20 Master “Small Multi-Task Machine”
MY20, our small conveyor model has yet a new configuration.l
Usually the food material gets changed then trays have to be changed. However, MY20 Master accommodates various trays on the conveyor. Customers select 10 Pieces, 20 Pieces and continuous mode so not just one but two to three products can be made. Also Multi-Skewer Hopper/Feeder, which is usually available for high volume machines, can be fit to MY20 Master. This Hopper/Feeder supports skewers up to 200mm in length. Small but very versatile machine can bring “Master” like work with your workers.
Usually the food material gets changed then trays have to be changed. However, MY20 Master accommodates various trays on the conveyor. Customers select 10 Pieces, 20 Pieces and continuous mode so not just one but two to three products can be made. Also Multi-Skewer Hopper/Feeder, which is usually available for high volume machines, can be fit to MY20 Master. This Hopper/Feeder supports skewers up to 200mm in length. Small but very versatile machine can bring “Master” like work with your workers.
Product Details
- Intermittent type conveyor
- Skewer Hopper/Feeder: Round skewer hopper/feeder (Standard Device), Multi-Skewer Hopper/Feeder (for pistol (flag), square, round and (flat) skewers (Optional Device).
- Conveyor Length: Standard Length (Standard Device), Long Conveyor (Optional)
- Detachable food material trays
- Single skewering machine
- Food material recognition sensor
- Emergency Stop button
- Skewer length: 135~180mm (Standard Specs), 80~120mm (Special Specs), 135~200mm (with Multi-Type Skewer Hopper/Feeder)
- Estimated Production volume is 1,500 skewers per hour
- オプション（マルチホッパー）
＊長さ200mmまでの丸串に対応します。
＊オプションでマルチホッパーを選択すれば、200㎜までの3種類の串（鉄砲串、角串、丸串）もしくは平串を自動供給して串刺しが行えます。
＊最大生産量はあくまで目安です。実際の生産量は対象となる食材や作業員によって異なります。
View more

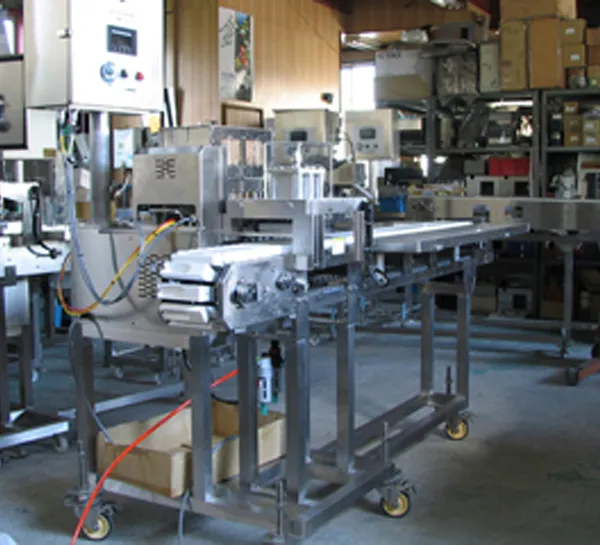

万能自動串刺機 MWA10 "高速大量生産機"
空圧駆動で同時に５本串刺しするシリーズ最速のモデルです。高い串刺し精度は維持しつつ大量生産を可能にしました。ソーセージ、ミートボールなど大振りの食材に適した機種です。
Product Details
- 丸串専用
- 5本刺し
- 目安生産量：～8,280本／H
- 着脱式食材トレー
＊長さ180mmまでの丸串に対応します。
＊最大生産量はあくまで目安です。実際の生産量は対象となる食材や作業員によって異なります。
View more

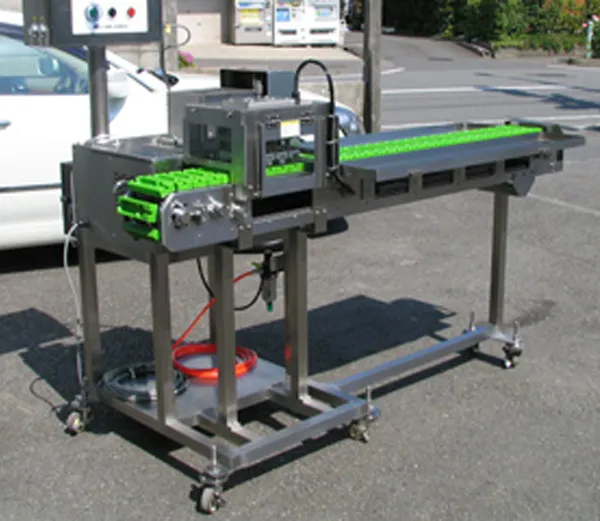

万能自動串刺機 MWA8 "高速大量生産機"
空圧駆動で同時に４本串刺しする高速大量生産串刺機です。高い串刺し精度は維持しつつ大量生産を可能にしました。
多種串供給機付属機種もあります。ソーセージ、ミートボールなど大振りの食材に適した機種です。
多種串供給機付属機種もあります。ソーセージ、ミートボールなど大振りの食材に適した機種です。
Product Details
- 丸串専用（標準）／鉄砲串・角串・丸串（・平串）兼用（オプション：マルチホッパー）
- ４本刺し（マルチホッパー搭載機は２本刺し）
- 目安生産量：～7,080本／h（マルチホッパー搭載機は～3,840本/ｈとなります）
- 着脱式食材トレー
- オプション（マルチホッパー）
＊長さ180mmまでの串に対応します。
＊オプションでマルチホッパーを選択すれば、180㎜までの3種類の串（鉄砲串、角串、丸串）もしくは平串を自動供給して串刺しが行えます。
＊最大生産量はあくまで目安です。実際の生産量は対象となる食材や作業員によって異なります。
View more

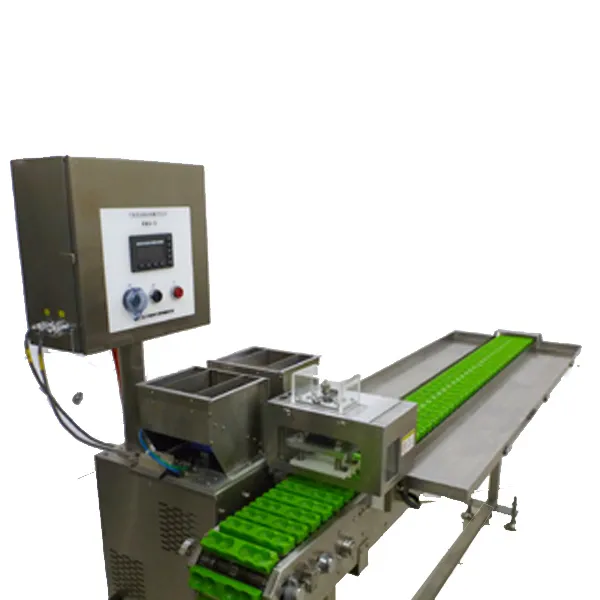

万能自動串刺機 MWA6 "高速大量生産機"
空圧駆動で同時に４本串刺しする高速大量生産串刺機です。高い串刺し精度は維持しつつ大量生産を可能にしました。多種串供給機対応機種もあります。ソーセージ、ミートボールなど大振りの食材に適した機種です。
Product Details
- 丸串専用
- ２本刺し
- 目安生産量：～3,000本／H
- 着脱式食材トレー
＊長さ180mmまでの丸串に対応します。
＊最大生産量はあくまで目安です。実際の生産量は対象となる食材や作業員によって異なります。
View more

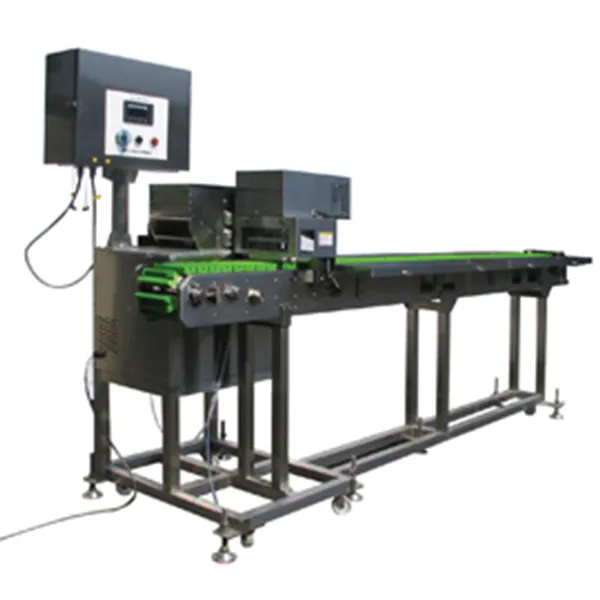

Automatic Skewering Machine MY60 “Best Selling Skewering Machine”
Has the biggest production volume with MY series machines. Put out high production volume and accommodate various food material. The standard model support skewers up to 180mm in length.
Product Details
- Intermittent type conveyor
- Skewer Hopper/Feeder: Round skewer hopper/feeder (Standard Device), Multi-Skewer Hopper/Feeder (for pistol (flag), square, round and (flat) skewers (Optional Device).
- Conveyor Length: Standard Length (Standard Device), Long Conveyor (Optional)
- Detachable food material trays
- Double skewering machine
- Food material recognition sensor
- Emergency Stop button
- Skewer length: 135~180mm (Standard Specs), 80~120mm (Special Specs), 135~200mm (with Multi-Type Skewer Hopper/Feeder)
- Estimated Production volume is 3,000 skewers per hour
- ２本刺し
- 目安生産量：～3,000本／H
- 着脱式食材トレー
- オプション（マルチホッパー、ロングコンベア、ワイドコンベア、着脱式コンベア）
＊長さ180mmまでの丸串に対応します。
＊オプションでマルチホッパーを選択すれば、180㎜までの3種類の串（鉄砲串、角串、丸串）もしくは平串を自動供給して串刺しが行えます。
＊最大生産量はあくまで目安です。実際の生産量は対象となる食材や作業員によって異なります。
View more

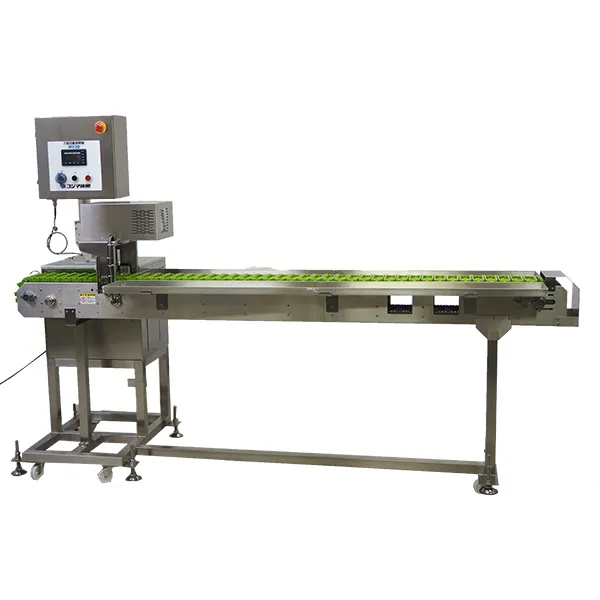

Automatic Skewering Machine MY30 “Best Selling Skewering Machine”
Was introduced in 1990 and has been improved almost every year. Customers do love this machine. Has intermittent conveyor and because of product quality, some customers do believe conveyors should have intermittent movement.
Product Details
- Intermittent type conveyor
- Skewer Hopper/Feeder: Round skewer hopper/feeder (Standard Device), Multi-Skewer Hopper/Feeder (for pistol (flag), square, round and (flat) skewers (Optional Device).
- Conveyor Length: Standard Length (Standard Device), Long Conveyor (Optional)
- Detachable food material trays
- Single skewering machine
- Food material recognition sensor
- Emergency Stop button
- Skewer length: 135~180mm (Standard Specs), 80~120mm (Special Specs), 135~200mm (with Multi-Type Skewer Hopper/Feeder)
- Estimated Production volume is 1,500 skewers per hour
＊長さ180mmまでの丸串に対応します。
＊オプションでマルチホッパーを選択すれば、180㎜までの3種類の串（鉄砲串、角串、丸串）もしくは平串を自動供給して串刺しが行えます。
＊最大生産量はあくまで目安です。実際の生産量は対象となる食材や作業員によって異なります。
View more

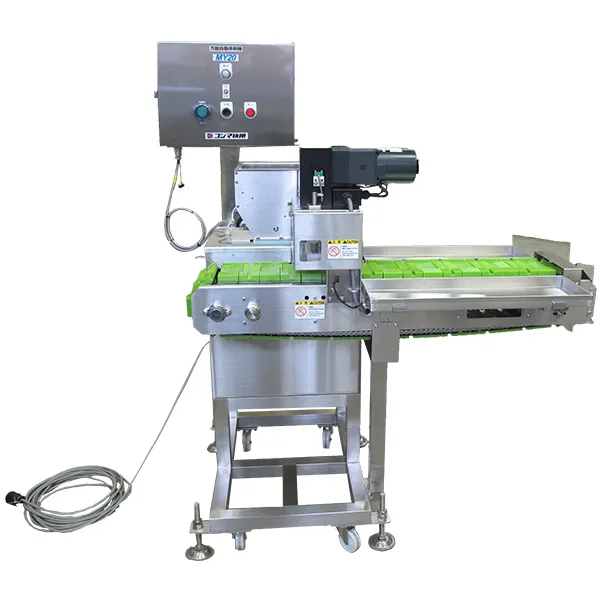

Automatic Skewering Machine MY20 “The Smallest Conveyor Machine”"
Small but the precision skewering action is there. Easy to use and easy to fit to the small space.Supports up to 180mm skewer length. We can provide a yet smaller model with the shorter conveyor.
Product Details
- Single skewering machine
- Estimated Production volume is 1,500 skewers per hour
- Detachable food material trays
- Skewer length: 135~180mm
＊最大生産量はあくまで目安です。実際の生産量は対象となる食材や作業員によって異なります。
View more

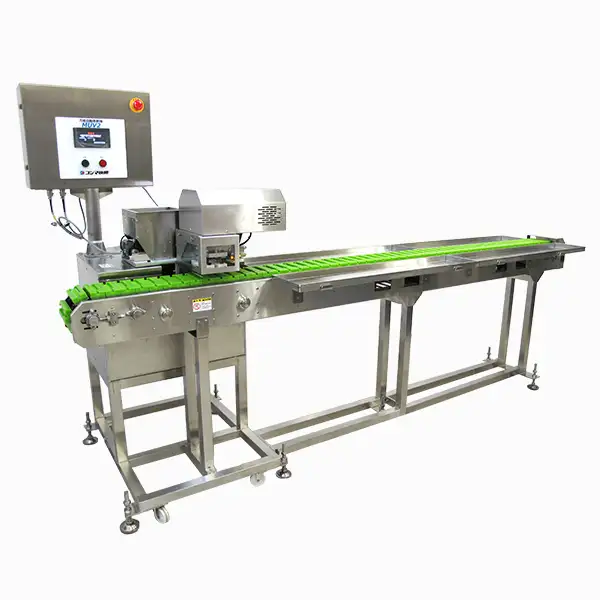

Automatic Skewering Machine MUV2
Customer friendly and higher production volume is difficult to meet but this machine puts out twice the production volume of MUV1. As with MUV1, it produces high quality skewered products.
The patented conveyor movement brings out high volume production all the time.The conveyor with less noise and less vibration helps the workers to achieve day to day high production volume. This is good news if you look for both work efficiency and cost effectiveness.
The patented conveyor movement brings out high volume production all the time.The conveyor with less noise and less vibration helps the workers to achieve day to day high production volume. This is good news if you look for both work efficiency and cost effectiveness.
Product Details
- Linear Conveyor (Low noise/Non intermittent movement)
- Skewer Hopper/Feeder: Round skewer hopper/feeder (Standard Specs), Multi-Skewer Hopper/Feeder (for pistol (flag), square, round and (flat) skewers (Optional Device).
- Conveyor Length: Standard Length (Standard Specs), Long Conveyor (Optional)
- Detachable food material trays
- Double skewering machine
- Food material recognition sensor
- Emergency Stop button
- Detachable Conveyor (Optional)
- Skewer length: 135~180mm (Standard Specs), 80~120mm (Special Specs), 180~300mm (Wide Conveyor Specs)
- Estimated Production volume is 1,500 skewers per hour
- 丸串専用（標準）／鉄砲串・角串・丸串（・平串）兼用（オプション：マルチホッパー）
- ２本刺し
- 目安生産量：～3,000本／H
- 着脱式食材トレー
- オプション（マルチホッパー、ロングコンベア、ワイドコンベア、着脱式コンベア）
＊長さ180mmまでの串に対応します。
＊オプションでマルチホッパーを選択すれば、180㎜までの3種類の串（鉄砲串、角串、丸串）もしくは平串を自動供給して串刺しが行えます。
＊最大生産量はあくまで目安です。実際の生産量は対象となる食材や作業員によって異なります。
View more
Automatic Skewering Machine MUV1
Patented linear movement conveyor outputs low noise and low vibration and gives less stressful conditions to the workers who may work long time next to the skewering machine.
The customer who would like efficient production and shorter production time may like this machine.
The products could come out very close to the ones skewered by hand. All the technological experiences of Kojima Giken are in this machine.
The customer who would like efficient production and shorter production time may like this machine.
The products could come out very close to the ones skewered by hand. All the technological experiences of Kojima Giken are in this machine.
Product Details
- Linear Conveyor (Low noise/Non intermittent movement)
- Skewer Hopper/Feeder: Round skewer hopper/feeder (Standard Specs), Multi-Skewer Hopper/Feeder (for pistol (flag), square, round and (flat) skewers (Optional Device).
- Conveyor Length: Standard Length (Standard Specs), Long Conveyor (Optional)
- Detachable food material trays
- Single skewering machine
- Food material recognition sensor
- Emergency Stop button
- Detachable Conveyor (Optional)
- Skewer length: 135~180mm (Standard Specs), 80~120mm (Special Specs), 180~300mm (Wide Conveyor Specs)
- Estimated Production volume is 1,500 skewers per hour
- オプション（マルチホッパー、ロングコンベア、ワイドコンベア、着脱式コンベア）
＊長さ180mmまでの串に対応します。
＊オプションでマルチホッパーを選択すれば、180㎜までの3種類の串（鉄砲串、角串、丸串）もしくは平串を自動供給して串刺しが行えます。
＊最大生産量はあくまで目安です。実際の生産量は対象となる食材や作業員によって異なります。
View more
Table Top Skewering Machine Chibi-Ske5 MKT80
Pallet type table top skewering machine.. MKT80 can skewer 5 skewered products in one cycle.
Suitable for customers who may think MA102TS, which produce one skewered product in one cycle, is too small but conveyor types are too big.
The physical size is small enough to have in the kitchen area.
Suitable for the customers who would like to shorten the preparation work, for restaurant chains with a small central production kitchen and for kitchen facilities of super markets.
Suitable for customers who may think MA102TS, which produce one skewered product in one cycle, is too small but conveyor types are too big.
The physical size is small enough to have in the kitchen area.
Suitable for the customers who would like to shorten the preparation work, for restaurant chains with a small central production kitchen and for kitchen facilities of super markets.
Product Details
- Automatically feeds round skewers
- By sliding into the skewer slit, pistol (flag) and square skewers can be used
- Support skewers from 135 to 180mm in length
- Detachable food material tray
- Pallet type machine (5 skewered products in one cycle)
- Estimated Production volume is 500 skewers per hour
View more

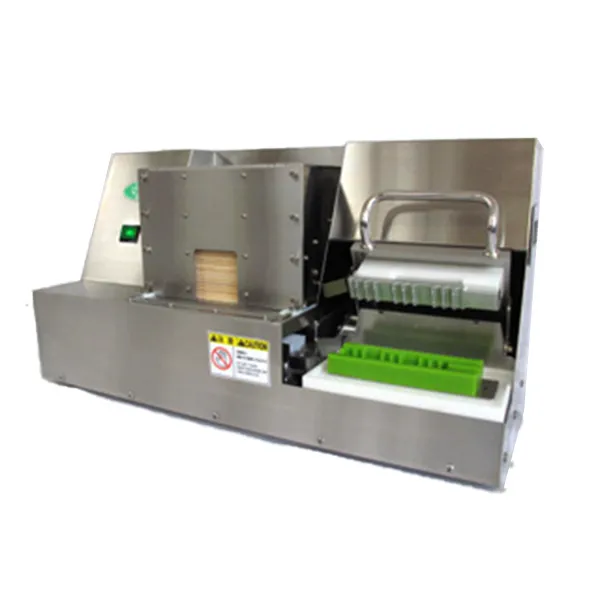

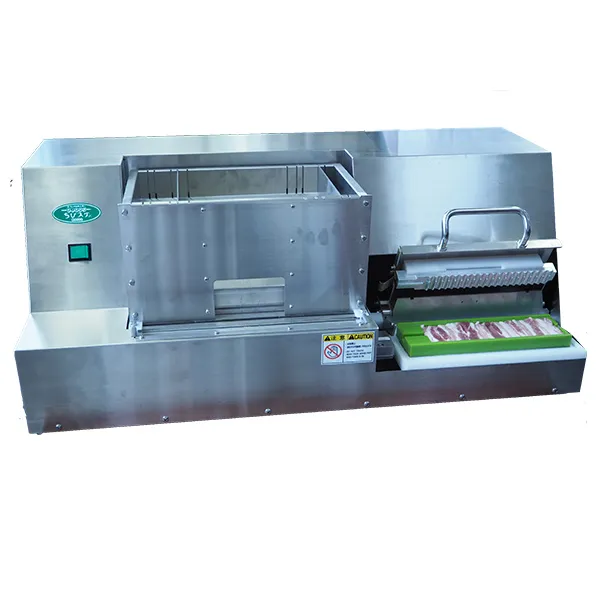

Table Top Skewering Machine MA102-SW “Supporting Long Skewers”
Based on very reliable MA102TS and improved so that long skewers up to 300mm can be used with this compact model.
Suitable for large size skewered products and for party size products.
If customers would like to have both regular size yakitori dishes and large size dishes on the menu, this is just the one.
Suitable for large size skewered products and for party size products.
If customers would like to have both regular size yakitori dishes and large size dishes on the menu, this is just the one.
Product Details
- Automatically feeds round skewers
- By sliding into the skewer slit, pistol (flag) and square skewers can be used
- Support skewers from 135 to 300mm in length
- Detachable food material tray
- Estimated Production volume is 120 skewers per hour
View more
Table Top Skewering Machine Chibi-Ske MA102TS
Table Top Skewering Machine Chibi-Ske MA102TS
Very compact type with all Kojima Giken technologies.
Renewed model of MA102 which was introduced and well received in 1977. A small model but all Kojima Giken technologies and improvement ideas are in this machine.
Small so the kitchens of limited space have no problem setting this machine. Small Yakitori shops do love this machine. This machine relieve customers from day to day skewering work.
Very compact type with all Kojima Giken technologies.
Renewed model of MA102 which was introduced and well received in 1977. A small model but all Kojima Giken technologies and improvement ideas are in this machine.
Small so the kitchens of limited space have no problem setting this machine. Small Yakitori shops do love this machine. This machine relieve customers from day to day skewering work.
Product Details
- Automatically feeds round skewers
- By sliding into the skewer slit, pistol (flag) and square skewers can be used
- Support skewers from 135 to 180mm in length
- Detachable food material tray
- Estimated Production volume is 180 skewers per hour
View more
